Ⅰ General Information

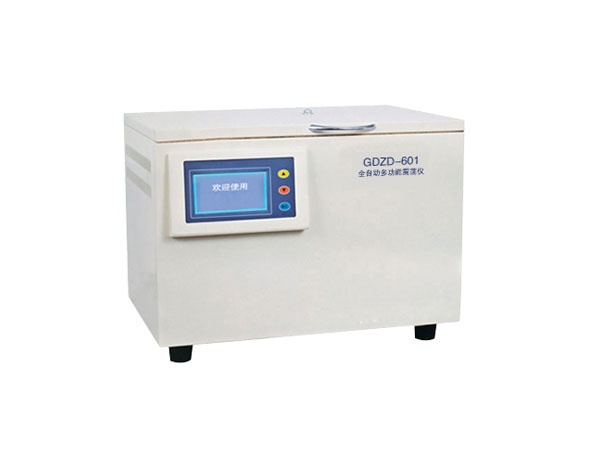

Multi-Function Shaker is used in laboratory to heat, shake, degas various kinds of liquid under constant temperature and a fixed time. It is controlled by mico-computer to realize man-machine interaction.

Ⅱ Features

• 240*128 LCD display.
• Small size, light weight and low noise.
• Easy operation, control temperature is accurate.

Ⅲ Specifications

• Temperature measurement range: 0~120℃
• Temperature control range: Room temperature to 110℃
• Temperature control method: Digital PID auto control
• Temperature control accuracy: Room temperature to 50℃, ±0.2℃; 50℃~100℃, ±0.3℃; 100~110℃, ±0.5℃
• Shaking frequency: 275±3 times/minute
• Shaking amplitude: 35mm
• Quantity of samples: Injector 100ml *8pcs; conical flask 250ml *4pcs

Ⅳ Working modes:

• Chromatography degassing: Constant temperature at 50℃, shaking for 20 mins, static for 10 mins.
• Water-soluble acid: Constant temperature at 75℃, shaking for 5 mins, static for 0 minute.
• User defined: Constant temperature 0 to 110℃ at any setting, shaking 0-99 mins at any setting, static 0~99 minutes at any setting.
• Start and stop by hand
• Voltage: AC220V±20%
• Frequency: 50Hz±5%
• Max. power consumption: 800W
• Environment temperature: 10℃-40℃
• Environment humidity: ≤85%
• Dimension: 500 X 350 X 400mm
• Weight: 35 kg
