Ⅰ General Information

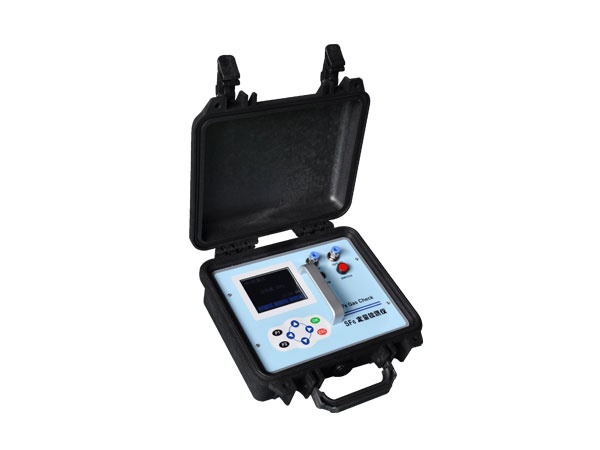

GDWG-IV SF6 Gas Leak Detector is infrared type leak detector. It is color LCD display and real-time shows SF6 concentration. It rapidly detects SF6 breaker, GIS leakage point and yearly leakage rate qualitatively and quantitatively. It's a good device suitable for power supply department, installation and overhaul unit, power test institute.

Ⅱ Features

• LCD display.
• User-defined alarm with sound and light.
• High sensitivity and good stability.
• Small size, easy to carry.
• AC/DC on-site use.

Ⅲ Specifications

• Measurement range: 0-300ppm SF6
• Sensitivity: ±0.1μL/L
• Resolution: 0.1μL/L
• Storage temperature: -40～+70℃
• Operation temperature: -10～+60℃
• Sampling mode: Built-in electromagnetic diaphragm pump, automatic slot-in type.
• Working voltage: 220VAC±10%,50Hz Or Built-in Li-battery.
• Dimension: 200×270×140mm
• Weight: about 3kg.

Much more products for your option:

1. GDWG-III SF6 Gas Leak Detector (SF6 Concentration)

2. GDSF-II SF6 Gas Analyzer (3-in-1)

3. GDWG-V SF6 Gas Quantitative Leakage Detector
