Ⅰ General introduction

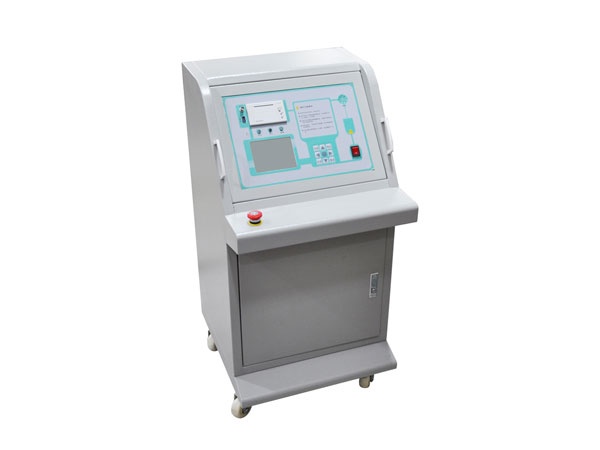

GDSL series Automatic Primary Current Injection Test Set is an ideal equipment for any electrical debugging that needs high current. The device is small, light, easy to operate and easy to maintain.

Ⅱ Features

• 320 × 240 LCD screen, high-speed thermal printer.
• High-precision sensors and high-performance 14-bit AD acquisition chip.
• Full keyboard operation, intelligent working process.
• Three kinds of tests for option: Automatic boosting test, manual boosting test and impact quick break test.
• Operating status is synchronously shown on the screen.
• Perfect over-current protection. Output current value, current limit and withstand current time can be set randomly.
• With functions of ground detection and zero detection, safe and reliable.
• Automatic withstand current timing after reaching to target output current. After timing, the motor returns to zero automatically.
• The motor returns to zero automatically if output current exceeds the set limit, with sound and light alarm.
• Anti-interference design, suitable for harsh electromagnetic environment.
• Automatic error diagnosis, easy to identify and solve problems.
• Optional extended functions such as remote communications, calibration interface etc.

Ⅲ Specifications

• Input voltage: AC220V ± 10% 50Hz ± 1.
• Output current:: 0-15000A (according to customer demand).
• Output Capacity: 0-1000kVA.
• Output voltage: 6V-24V(according to customer demand).
• Impact timing range: 0-999mS.
• Ambient temperature: -20 ℃ to 50 ℃.
• Current accuracy: ≤ 1.0% (F.S).
