General introduction

GD2136 Cable Fault system is an effective tool to maintain all kinds of cables. It uses various detection way to test cable faults,which is suitable for different levels voltage power cables and communication cables.

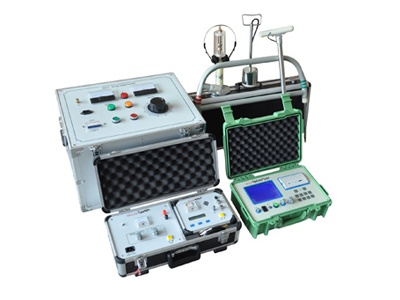

The system contains below units:

• 1. GD-2133 Cable fault tester
• 2. GD-2132 Cable fault locator
• 3. GD-2131 Impulse generator
• 4. Other accessories

GD2133

Features

• Safe,prompt and accurate testing. It uses LV impulse method and HV flashover detection,which test all kinds of cable fault.
• Using high speed data sampling technology. A/D sampling speed is 100Mhz.
• Wave form and data display automatically on big LCD screen.
• Wave form and parameter storage function.
• Function of comparing testing wave form of cable fault with normal wave form.
• Wave form extending function.
• Directly show fault point and testing point direct distance or relative distance.
• Modify speed of propagation any time according to different testing cables.
• Built-in rechargeable battery.Small size,portable to carry.

Specifications

• Max.testing distance:32km(Open wire up to 100km)
• Blind detection: 1m
• Resolution: 1m
• Power consumption: 5VA
• Environmental temperature: 0-40℃(limit temperature:10℃-50℃)
• Relative humidity: 40℃（20～90）%RH
• Atmospheric pressure: 86-106Kpa
• Weight:3.5kg

GD-2132

specifications

• Including transmitter, receiver, Inductive probe, potential type detection frame.
• Fault insulation resistance:0-5MΩ
• Locating accuracy:≤±10cm.
• Detection cable depth:≤3m.

GD-2131

specifications

• Input power supply: AC 220V, 50Hz
• Output voltage: DC 0-15kV
• Rated power consumption: 2kVA
• Environmental temperature:0-40oC
• Humidity:<75% RH
• Altitude:<1000m
• Insulation level:A
• Dimension:430*540*410mm
• Weight:about 48.5kg.
