Product Description

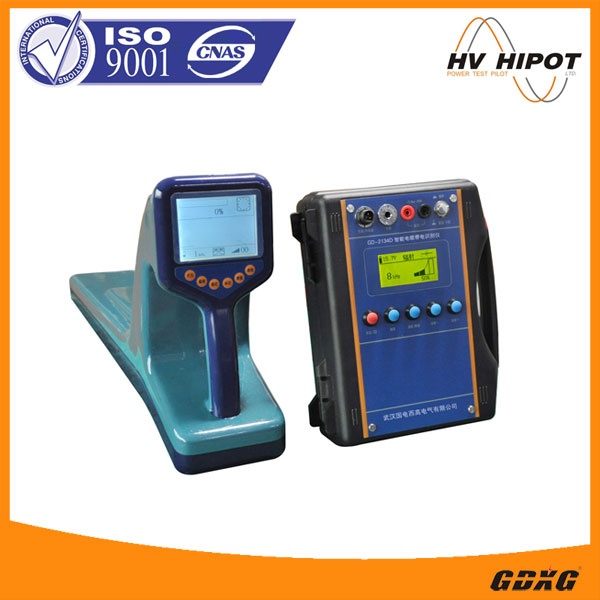

GD-2134D Cable Identifier includes a transmitter and a receiver, it can be used to locate trace and depth of the underground cables and metallic pipes, also to identify the cable from a bunch of cables.

Features

Transmitter

• Output (Three mode): Direct connection output, Clamp Coupling output, Radiation induction.
• Frequency (6 for choice): 500Hz, 1kHz, 8kHz, 33kHz, 66kHz, 93kHz, including 500Hz and 1kHz is complex frequency. It can realize the function of Correct/False indication and pipe identification with the help of Receiver.
• Fault signal output to detect Pipe grounding fault.
• Power output: Max. 10W, 4 steps adjustable.
• Automatic impedance matching and functions of overload&short-circuit protection.
• Power supply: Internal rechargeable Lithium battery. It can be recharged by charger (AC 220V) or car cigarette lighter (12V).
• If low battery, the instrument will shut down automatically, to protect battery.
• Robust and portable.

Receiver

• Left/Right arrow indication for Cable Route Tracing. (Patent technology)
• Correct/False indication (Patent technology). It will point to the forward when the detected cable is traced correctly. Otherwise, it will point to the backward and it will show “?”.
• Strong anti-interference.
• Automatic measurement of depth and current.
• Various detection mode, more accurate.
• Detection frequency: 500Hz, 1kHz, 8kHz, 33kHz, 66kHz, 93kHz, suitable for different conditions.
• Two passive detection frequency bands: power frequency and radio frequency (RF). No need to connect with audio frequency generator.
• History curve display.
• Cable identification: Clamp identification and stethoscope identification. Clamp identification can measure the current amplitude and direction of cable precisely and give accurate result. Stethoscope identification is a traditional method when it is not convenient to use Clamp identification. It is easy wiring for Stethoscope identification.
• Grounding fault location.
• Built-in Rechargeable lithium battery.
• Automatic shut down if there is no operation in 30mins.
• Robust and portable.

Specifications

Transmitter

• Output frequency:
• 500Hz, 1kHz, 8kHz, 33kHz, 66kHz, and 93kHz.
• 500Hz and 1kHz are complex frequency.
• 8Hz is very low complex frequency. It is the frequency of fault location.
• Output power: Max.10W for 500Hz, 1kHz, 8kHz, 33kHz and fault location frequency. Four steps adjustable: 2.5W, 5W, 7.5W, 10W. 1W for 66kHz and 93kHz.
• Output voltage: Max.200V (AC peak value), automatic adjustable according to the load.
• 128*64 LCD display.
• Built-in Lithium battery: nominal 14.8V, 7Ah.
• External power supply: rated voltage DC12V (car cigarette lighter output)
• Charger: AC 100-240V input, 50/60Hz, output DC 16.8V,2A/3A.
• Size: 275*220*100mm.
• Weight: 2.4kg.
• Working condition: Temperature -10--40℃. Humidity 5-90% RH, Altitude<4500m.

Receiver

• Input mode: Built-in receiving coil, Clamp, 1k Stethoscope, 8k Stethoscope, A type fault detection device.
• Receiving frequency:
• Active detection frequency for Pipes: 500Hz, 1kHz, 8kHz, 33kHz, 66kHz and 93kHz.
• Passive detection frequency: Power frequency and radio frequency (RF).
• Clamp identification frequency: 500Hz, 1kHz complex frequency.
• Clamp current measurement frequency: 500Hz, 1kHz, 8kHz.
• Stethoscope identification frequency: 1kHz, 8kHz..
• Grounding fault location frequency: 8Hz complex frequency.

Pipe detection mode:

• Automatic Peak method (wide): It is suitable for active detection, with Left/Right direction indication. When the frequency is 500Hz and 1kHz, there is Correct/False indication.
• Peak method: suitable for passive detection.
• Narrow method
• Null method

Cable identification mode:

• Automatic Clamp identification
• Clamp current measurement
• Stethoscope identification
• 320*240 LCD display, shows signal amplitude, left/right direction, correct/false indication, history curve of signal strength, depth, current and result.
• Built-in Lithium battery, rated 7.4V, 7Ah.
• Charger: AC100-240V input, 50/60Hz, output DC 8.4V,2A/3A.
• Size: 700*270*120mm
• Weight: 3.5kg

Working condition: Temperature 0-40℃, Humidity 5-90% RH, altitude<4500m.
