Product Description

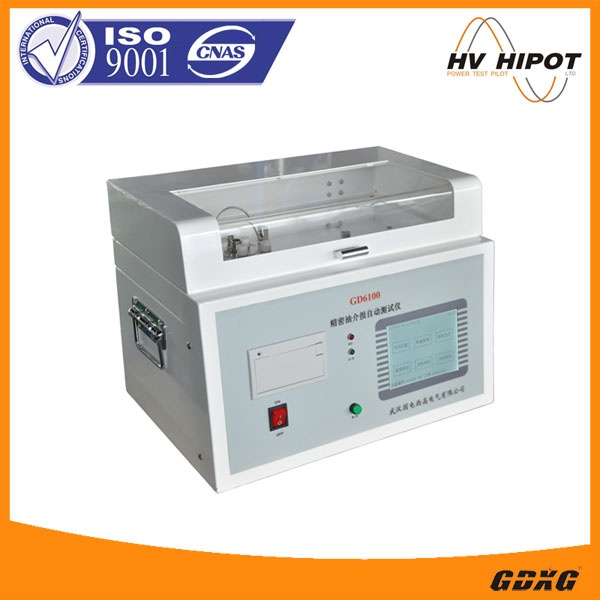

GD6100 Automatic Precision Oil Dielectric Loss Testers is a high-precision instrument of testing dielectric loss angle of insulating oil and other liquid, integrated with main components of cup oil of dielectric loss, temperature controller, temperature sensor, dielectric loss test power Bridge, AC test power, standard capacitors.

Features

• Advanced high-frequency induction heating mode,heat evenly,fast speed,easy to control;
• All digital technology, automated measurement;
• Large LCD display, full English menu, the results can be printed.

Specifications

• Conditions : -5 ℃ -40 ℃ RH <80%;
• Power Supply: AC 220V ± 10% ;
• High output: 1000V ~ 2200V every 200V
• Accuracy: 2%
• Capacity: 50VA Output Current 25mA;
• Temperature induction furnace: Maximum Power 1500W;
• Temperature control range: <100 ℃;
• Temperature measurement error: ± 0.5 ℃;
• Temperature error: ± 1 ℃;
• Temperature time: less than 20min , at room temperature to 90 ℃;
• Measuring range: tgδ unlimited, Cx 15PF ~ 300PF;
• Accuracy:  tgδ: ± (reading x 1.0% + 0.020%)
•                C x: ± (reading x 1.0% + 0.5PF);
• Dimensions: 450 (L) × 310 (W) × 360 (H);
• Weight: 18kg;
