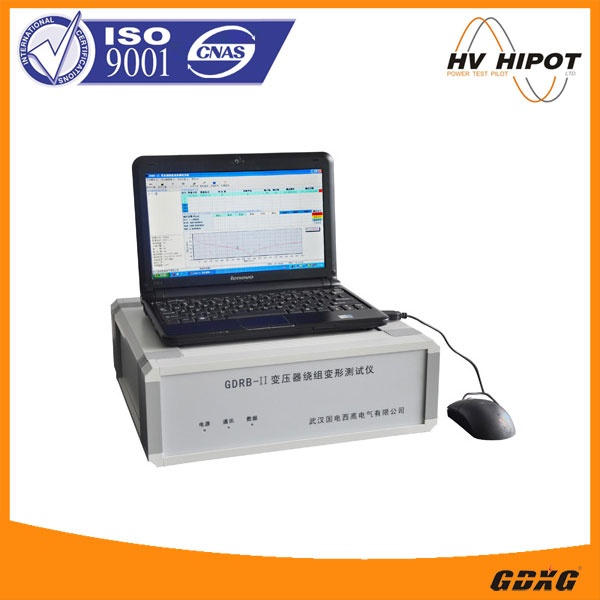

GDRB-Ⅱ Transformer Frequency Response Tester Detects Transformer Winding Movements And Mechanical Failures Due To Mechanical Shock, Transportation Or Short Circuits. Detection Of These Displacements Ahead Of A Dielectric Failure Can Reduce Unplanned Maintenance Costs, And Provide The Possibility To Improve System Reliability By Preventing Outages. Additionally, When Damage Is Discovered, Repairs May Be Targeted To A Specific Phase Winding. GDRB-Ⅱ Can Detect All Level Power Transformers.

Specifications

General

• Operating Temperature: -10 .. +60°C
• Storage Temperature: -20 .. +70°C
• Relative Humidity: 10 .. 90 % non-condensing
• Mains Universal: 220±10% (110±10%) VAC, 50 / 60 Hz, 100W
• Dimensions Instrument: 32cm x 30cm x 12 cm
• Weight Instrument: 20 kg
• Automatic interpretation according to Chinese standard DL/T911-2004.
• Calibration Interval: 3 Years

Measurement

• Source output: one channel
• Source frequency range: 10Hz~10MHz
• Source Frequency accuracy: 0.01%
• Source impedance: 50Ω
• Source amplitude: Max.10Vpeak_peak,user difined
• Analog input number: two channels
• Input impedance: 50Ωor 1MΩ
• Sampling: Max 100MHz per channel
• Accuracy: 0.5dB at +20dB~-80dB
• Dynamic range: +20dB~-80dB
• Protection: against short circuit overload
• Measuring Points: Max. 3’000, User Defined
