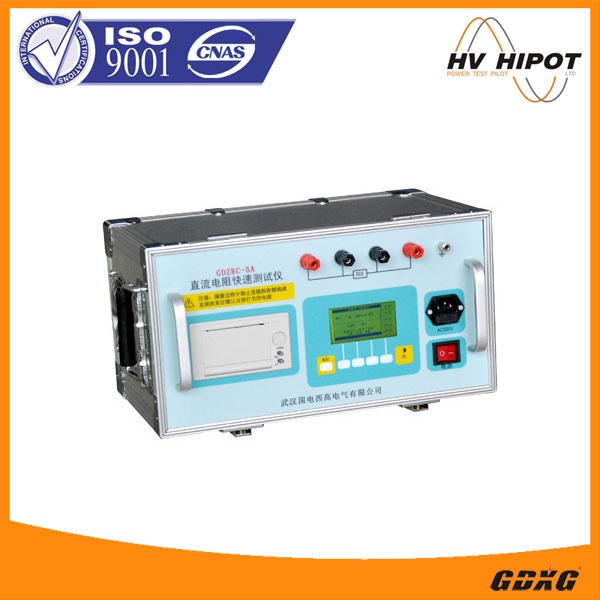

GDZRC-5A DC winding resistance tester

hits:

Product Description

GDZRC-5A DC resistance tester is designed to measure DC resistance of inductive devices, such as transformers and power inductors. It uses new power technology,with the features of fast measurement,small size and high accuracy of measurement,which is ideal equipment of measuring transformer winding and DC resistance of big power inductance equipment.

Features

Four leads measurement to ensure measuring accuracy;
Program-controlled current source to increase measuring speed;
Auto arc suppression to ensure safety and availability;
Auto/Manual measuring range selecting;
Measured data can be stored, max 255 records;
128*64 LCD screen and Built-in Printer;

Specifications

Items	Specifications		Remark
Testing current	1mA 10mA 1A 5A
Measurement range	1mA: 10mA: 1A: 5A:	1Ω-20KΩ 1Ω-2KΩ 10mΩ-20Ω 1mΩ-4Ω
Accuracy	±0.2% of full range ±2digit
Data storage	255pcs
Display	LCD screen		4 1/2 digit
Max.resolution	0.1μΩ
Power supply	AC 220V±22V, 50Hz±2 Hz		Fuse 5A
Max.power consumption	120W		Testing current is 10A
Working environment	Temperature: 0-40℃ Relative humidity: ≤80%
Dimension	200400280mm
Weight	About 6kg
