Product Description

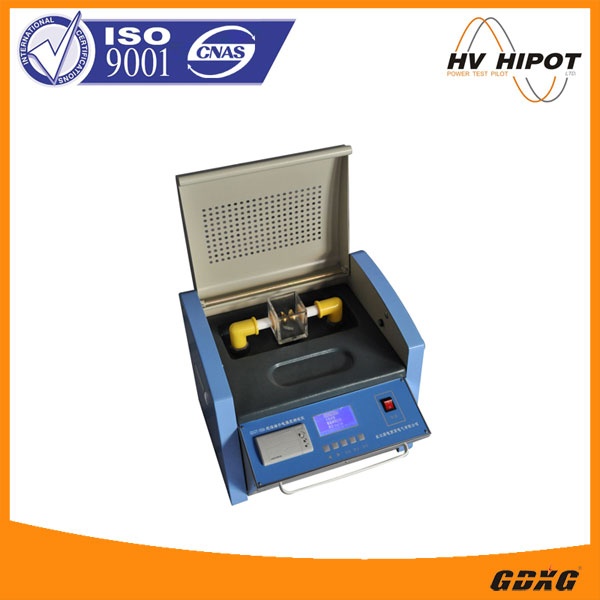

GDOT Insulation Oil Breakdown Tester Is Fully Digital Industrial Instrument With Microcomputer Control. It Has The Features Of High Accuracy And Strong Anti-Interference Ability.

Features

• LCD screen display.
• Single-chip control, stable and reliable.
• No system halted condition.
• The oil cup is made by special glass with one-time moulding by casting. No leakage.
• Over-current and over-voltage, short circuit protection functions, with strong anti-interference ability.
• Easy to carry and move.

Specifications

• Capacity: 1.5kVA
• Increasing speed: 2.0kV/s, 2.5kV/s, 3.0kV/s, 5.0kV/s, four ranges to be selected
• Output voltage: 0-100kV
• Voltage resolution: 0.1kV
• Power supply distortion rate: <1%
• Electrode gap: 2.5mm
• Dimension: 409*393*388mm
• Weight: about 29kg.
• Use Condition
• Environmental temperature: 0-40℃
• Relative humidity: ≤85%
• Power supply: AC220V±10%
• Frequency: 50±5Hz
• Power consumption: <200W

More information will be provided:

1. GDOT-3B  Insulation Oil Dielectric Strength Tester

2. GDOT-80A Insulation Oil Dielectric Strength Tester
