GDTF-HTS AC Resonant Test System (for Substation Equipment)

hits:

Product Description

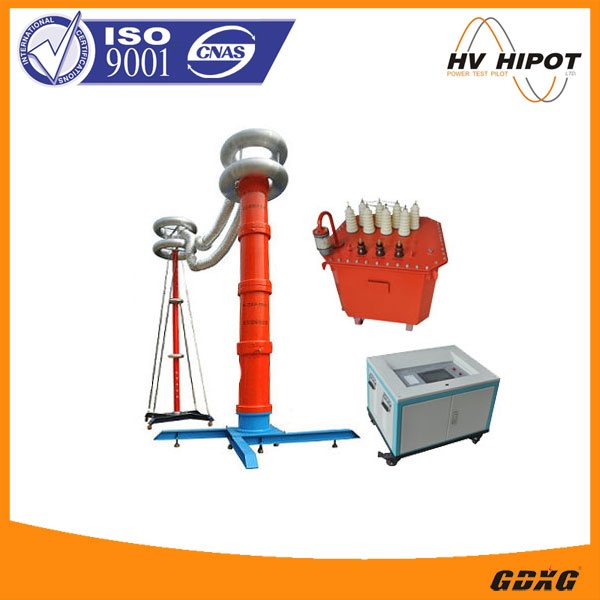

AC Resonant Test System For Substation Electrical Equipment, Is Mainly Composed Of Variable Frequency Power,Exciting Transformers,Reactors, Capacitive Dividers, Which Designed For AC Withstand Voltage Test Of Substation Electric Primary Equipment 220kV Or Below.

Applications

Transformer
GIS system
SF6 switchgear
Cables
Bushing
Insulator
CT/PT
Other capacitive devices

Features

Smaller size,lighter weight compared with same voltage level,same capacity reactor.
Small temperature rise at rated load.Dry type epoxy cast,high mechanical strength,good insulation,nice and reliable.
Adjustable capacity of frequency control source.Strong protection, good stability. With multiple working mode,easy to operate.
With 220V or 380V single phase power,convenient for on-site power sourcing.
Flexible configuration.Different type reactors for optional,meet different test object requirements. Multifunctional ,cost effective.

Specifications

Rated output voltage: 0 - 800kV (AC ) or below.
Output frequency: 20 ~ 300Hz.
Waveform: pure sine wave, THD <1.0%.
Max. capacity: 1000kVA and below.
Duty Cycle: Continuous working time 15mins one time at full power output.
Quality factor: 30-90.
Frequency adjustment sensitivity: 0.1Hz, instability <0.05%.
Power Supply: 380/220V ± 15% / 50Hz ± 5%.

Product Configuration

GDTF-108/10
Input voltage (V)	380
Output voltage (kV)	0-108
Capacity (kVA)	108
Application scope	31500kVA or below
	35kV power transformer
	35kV circuit breaker and bus bar,insulators
	10kV (300 mm²) cable 2000m
	35k V(300 mm²)cable 500m
Main configurations	5kW Variable frequency source 1 set
	5kVA Exciting transformer 1 set
	Reactors 27kV/1A 4sets
	Capacitive divider 100kV
GDTF-216/216
Input voltage (V)	380
Output voltage (kV)	0-216
Capacity (kVA)	216
Application scope	110kV Circuit breaker and bus bar
	110kV GIS
	35kV(300 mm²) cable 1500m
	10kV(300 mm²) cable 3km
	110kV full insulation Transformer
Main configurations	10kW Variable frequency source 1 set
	10kVA Exciting transformer 1 set
	Reactors 54kV/1A 4sets
	Capacitive divider 200kV
GDTF-270/270
Input voltage (V)	380
Output voltage (kV)	0-270
Capacity (kVA)	270
Application scope	110kV GIS and transformer
	110kV GIS and transformer
	35kV (300 mm²) cable 2km
Main configurations	15kW Variable frequency source 1 set
	15kVA Exciting transformer 1 set
	Reactors 54kV/1A 5sets
	Capacitive divider 300kV
GDTF-200/400
Input voltage (V)	380
Output voltage (kV)	0-400
Capacity (kVA)	200
Application scope	220kV GIS and transformer
Application scope	110kV GIS and transformer
Main configurations	10kW Variable frequency source 1 set
	10kVA Exciting transformer 1 set
	Reactors 100kV/0.5A 4sets
	Capacitive divider 400kV
GDTF-400/400
Input voltage (V)	380
Output voltage (kV)	0-400
Capacity (kVA)	400
Application scope	220kV GIS and transformer
	10kV (300 mm²) cable 4km
	35kV (300 mm²) cable 1km
Main configurations	20kW Variable frequency source 1 set
	20kVA Exciting transformer 1 set
	Reactor 100kV/ 1 A 4sets
	Capacitive divider 400kV
