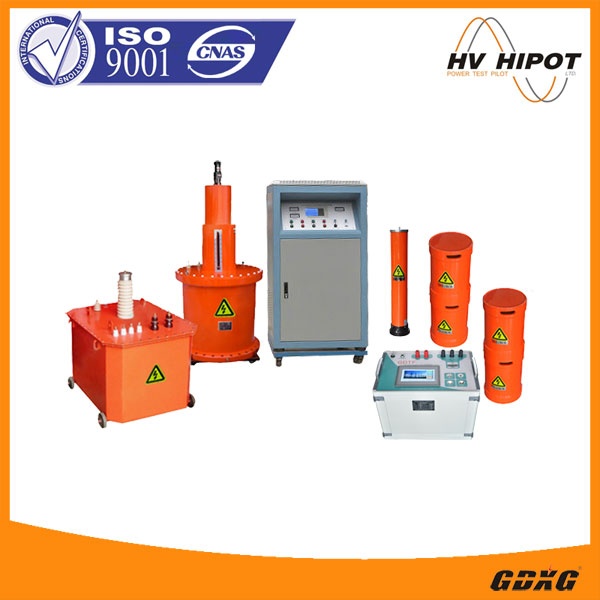

GDTF-GSW AC Resonant Test System (for Generators)/Voltage Withstand Test Device

hits:

Product Description

GDTF series AC Resonant Test System for Generators can be used by adjusting inductance of the reactor, or adjusting the work way of resonant frequency of the system to achieve resonance. You can also use both two methods to achieve resonance. In the voltage boosting process, if the resonant point deviate, you can find it exactly by the way of fine tuning frequency, which ensure a high Q value and reduce power capacity and volume weight of test equipment.

Features

Smaller size,lighter weight compared with same voltage level,same capacity generator AC withstand voltage test equipment. Single equipment is no more than 60kg, easy to move.
Advanced principle of whole set device and new frequency & inductance modulation technology, strictly ensure generator power frequency withstand voltage test requirements. Wide application scope.
Equipped with 20Hz-300Hz variable control source. Good protection and output waveform, high stability. With multiple working mode,easy to operate.
Power supply of 220V or 380V, convenient for on-site power sourcing;
Max.Q point can be found exactly by the mode of first inductance modulation and later frequency modulation, to avoid resonance deviation because of voltage boosting;
Flexible configuration and strong extension. Meet all capacitive test object testing requirements in power system.
Power frequency test mode or Variable frequency test mode.
Multi-use, cost-effective.

Specifications

Rated output voltage: 0 ~ 50kV (RMS) or below.
Output frequency: 45 - 300Hz.
Waveform: pure sine wave, THD ≤ 1%.
Max. capacity: 2000kVA or below.
Duty cycle: continuous working 15mins one time at full power output.
Quality factor: 10 - 40.
Frequency adjustment sensitivity: 0.1HZ, instability of <0.05%.
Power supply: 220V or 380V ± 15%, 50HZ ± 5%.

GDTF (L) - 540/60
Input voltage (V)	380
Output voltage (kV)	0-60
Capacity (kVA)	540
Application scope	Generator--capacitance to the ground 0.1-0.7 μF
Main configurations	60kV/3A Fixed reactor 2 se ts
	60kV/3A Adjustable reactor 1 set
	Capacitive divider 60 kV
GDTF (L) - 1080/60
Input voltage (V)	380
Output voltage (kV)	0-60
Capacity (kVA)	1080
Application scope	Generator--capacitance to the ground 0.3-1.5 μF
Main configurations	60kV/4.5A Fixed reactor 2 sets
	60kV/4.5A Adjustable reactor 2 sets
	Capacitive divider 60kV
GDTF (L) - 2160/60
Input voltage (V)	380
Output voltage (kV)	0-60
Capacity (kVA)	2160
Application scope	Generator--capacitance to the ground 0.5-2.5 μF
Main configurations	60kV/9A Fixed reactor 2 sets
	60kV/9A Adjustable reactor 2 sets
	Capacitive divider 60kV

Common configuration of Variable Frequency test mode

GDTF- 100 / 50
Input voltage (V)	380
Output voltage (kV)	0- 50
Capacity (kVA)	100
Application scope	Generator--capacitance to the ground 0.07-0.13 μF
Application scope	10 kV (300 mm² ) cable ≤ 1 km
Main configurations	50kV/1A Fixed reactor 1 set
	50kV/1A Adjustable reactor 1 set
	Capacitive divider 50kV
GDTF-150/50
Input voltage (V)	380
Output voltage (kV)	0- 50
Capacity (kVA)	150
Application scope	Generator--capacitance to the ground 0.13-0.2 μF
Application scope	10 kV (300 mm² ) cable ≤ 1.5 km
Main configurations	50kV/1.5A Fixed reactor 1 set
	50kV/1.5A Adjustable reactor 1 set
	Capacitive divider 50 kV
GDTF- 225/50
Input voltage (V)	380
Output voltage (kV)	0- 50
Capacity (kVA)	225
Application scope	Generator--capacitance to the ground 0.2-0.27 μF
Application scope	10 kV (300 mm ² ) cable ≤ 2.5 km
Main configurations	50kV/1.5A Fixed reactor 2 sets
	50kV/1.5A Adjustable reactor 1 set
	Capacitive divider 50 kV
GDTF- 360/60
Input voltage (V)	380
Output voltage (kV)	0- 60
Capacity (kVA)	360
Application scope	Generator--capacitance to the ground 0.27-0.33 μF
Main configurations	60kV/2A Fixed reactor 1 set
	60kV/2A Adjustable reactor 1 set
	Capacitive divider 60kV
