Product Description

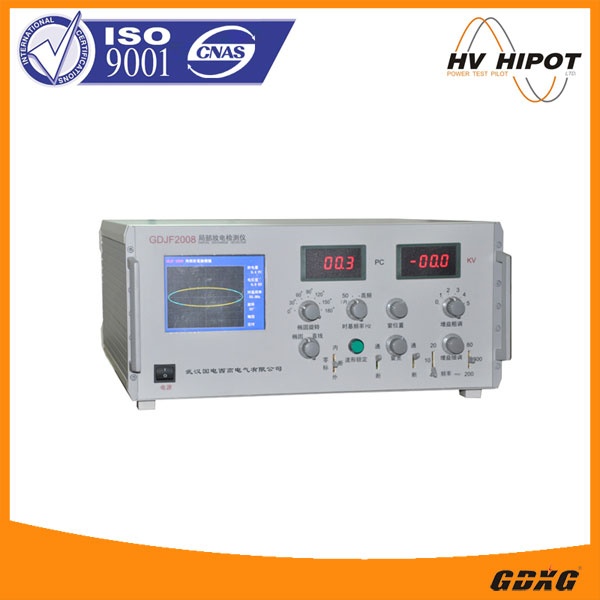

GDJF-2008 Partial Discharge Detector is measuring partial discharge for the products  such as transformers, mutual inductors, HV switches, zinc monoxide arresters and power cables. It also can make type tests and monitor insulation operation.

This type has the advantages of high sensitivity, wide range of capacitance, being well equipped for input unit impedance detecting and more variants of frequency bands ( 9 in all). After proper setting, the discharge impulse amount can be read directly. The indicating and digital meters are shown simultaneously.

This detector is widely applied in power stations, manufacturers and institutions.

Features

• Ambient temperature: 0-40℃±2℃
• Relative humidity: ≤80%
• Power supply: 220V±10%, 50HZ
• No violent vibration and mechanical shock
• The device should be placed in the environment with no dust and corrosive, good ventilation. It should not be interfered by strong electromagnetic.
• Earthing requirements: earthing resistance <1Ω

Specifications

• Capacitance range to be tested6PF-250μF
• Testing sensitivity (shown in Table.1)

Table 1

Amplifier band

• Low terminal: 10KHZ, 20 KHZ, 40 KHZ (optional)
• High terminal: 80 KHZ, 200 KHZ, 300 KHZ (optional)

Amplifier gain adjustment

• Coarse control – there are 6 steps for coarse tuning, the gain of each step is 20±1db
• Fine control ≥ 20 db

Time windows

• Width of window, adjustable 15o-150o
• Window position, adjustable 0o-170o
• Two windows can be opened simultaneously or separately.

Discharge meter

• Digital display
• PD display: LED 3½ digits
• 0-100.0    Error <±5% (full scale)

Ellipse time base

• Frequency: 50Hz,100Hz,150Hz, 200Hz,400Hz
• Elliptic display color is yellow
• Elliptic rotation: each step is 30°, 120 ° rotation can be made.
• Display: ellipse – straight line
• Enable to adjust high-frequency time base ellipse to normal size according to input voltage (13-275V)., intake power < 1 VA.

Waveform lock

• Lock required waveform of any time to facilitate observation and analysis

Testing Voltage meter

• Range: 100KV (Can be expanded)
• Display by 3½ digital voltage meter
• Accuracy: better than ±5% (full scale)
• Inside, outside the zero mark function
• Dimensions: 450×450×190 mm
