Product Description

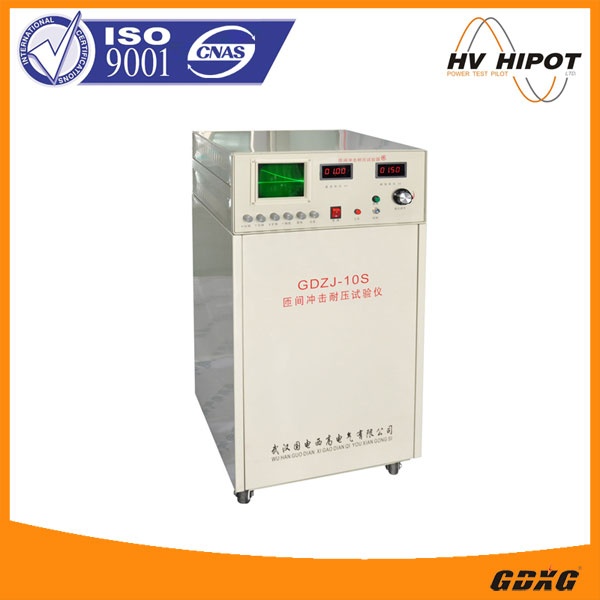

GDZJ-S is used to test turn-to-turn insulation strength of single phase motor, 3-phase motor, Micro motor, Special motor, electrical motor, transformer(including switching mode power supply transformer), relay and winding electrical equipment.

Features

It can detect below faults:

• Turn-to-turn Insulation breakdown
• Corona discharge
• Winding connection mistake
• Winding disconnection
• Turn-to-turn difference
• Short-circuit between interphase,winding phase or iron core

Specifications

• Peak voltage: 500-10kV continuous adjustment
• Peak error: ≤ 5%(1kV-5kV)
• Waveform rising time: 0.5μS or 0.2μS
• Power supply: 220V±10%,50HZ
• Power consumption: ≤ 800 W
• Dimension: 900*460*550mm
• Weight: about 70kg

Important Tips

GDZJ-S includes two parts. Upper part includes control unit and regulator. The below part is HV major loop. The two parts are connected by 14core socket.
