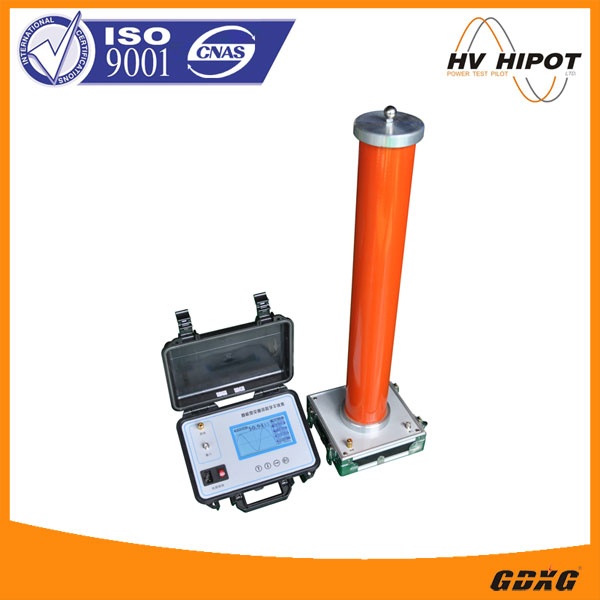

Model No.

GDFR-R50

GDFR-R100

GDFR-R150

GDFR-R200

GDFR-R300

GDFR-R400

Voltage(kV)

50

100

150

200

300

400

DC frequency(Hz)

<2

Accuracy

DC:1.5%

Accuracy for option(G type)

DC:1.0%

--

Accuracy for option(G type)

DC:0.5%

--

Impedance

(MΩ)

650

1200

1700

2200

3500

4300

Capacitance

(pF)

320

180

150

120

120-500

100-800

Voltage ratio

1000:1 or 10000:1 (or customized)

Dimension

(mm)

150×150

160×160

200×200

260×260

800×800

Cable impedance(Ω)

50 / 75

Range

1. Low range: 0-20kV

2. High range: 20kV-rated voltage

1. Low range: 0-200kV

2. High range:200kV-rated voltage

Cable length(m)

3

4

5

6

8

10

Weight(kg)

5.5

6.9

10.6

14.1

23.5

48.2

Packing Medium

Dry type high polymer material

Operation temperature

0℃-45℃

Relative humidity

<85%RH,no condensation

Altitude

<1500m(or customized)

Use condition

Indoor use or outdoor use in Sunny day
