Product Description

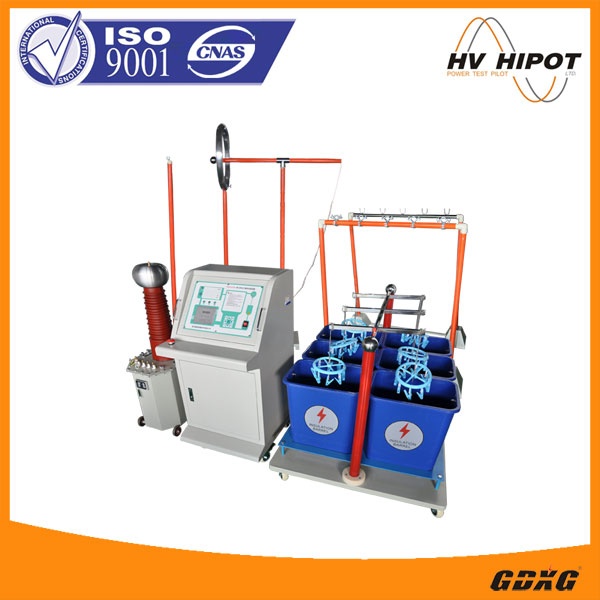

GDJS-6A Automatic Insulated gloves(boots) Test set is used for batch test of insulated gloves(boots), which simplifies test procedure, improves test speed and reduces test strength. This guarantees operator's security and identifies parameters of leakage current, insulation aging and frequency voltage reliably. It can test 6pcs insulated gloves(boots) at the same time.

The device integrates high voltage power with control system. It has following characteristics: easy wiring and easy operation, reliable and reasonable layout, convenient moving, flexible dismounting, which has made it an ideal product for updated generation.

Features

• 320*240 LCD screen, high speed thermal printer;
• 8 measurement ways for high voltage, low voltage current, 6-way leakage current. High precision sensors and high perfomance 14-digit AD acquisition chip;
• Full keyboard operation mode, automatic working process. Automatic and manual operation for optional;
• Real time show high voltage,low voltage current, 6-way leakage current,time and withstand voltage result;
• Automatic saving data. how last time data when power cut off and on again;
• Perfect over-voltage, over-current protection. Set output voltage,low voltage current upper limit, leakage current upper limit and timing at random;
• Returning-zero detection function. Safe and reliable;
• Automatic timing when reaching set voltage, automatic returning to zero after timing;
• Automatic cutting off voltage output if beyond set low voltage current upper limit or leakage current upper limit. While voltage back to zero, sound and light alarm starts;
• Superior anti-interference design, suitable for harsh electromagnetic environment;
• Auto error diagnosis, easy finding and solving problems;
• Functions of remote communication, alarm lights, door interlock, external divider calibration interference for optional.

Specifications

• Rated capacity: 3kVA(customized)
• Input voltage: AC220V±10% 50Hz±1
• Output voltage: 0-30kV(customized)
• Voltage accuracy: ≤2.0% (F.S)
• Low voltage current: 0-15A
• Leakage current: 0-20.0mA
• Leakage current resolution: 0.1mA
• Current accuracy: ≤1.5% (F.S)
• Timing range: 0-999s
• Environment temperature: -20℃ to 50℃
