Partial Discharge Test System High Voltage Test Set PD test

hits:

Product Description

It is mainly used for testing frequency voltage insulation level of various insulation materials, insulation structure and electrical products, also as partial discharge frequency testing power supply for testing object such as transformer, mutual inductor, capacitor and lightning arresters. It widely used in electrical manufacturing, power operation departments, research institutes and universities.

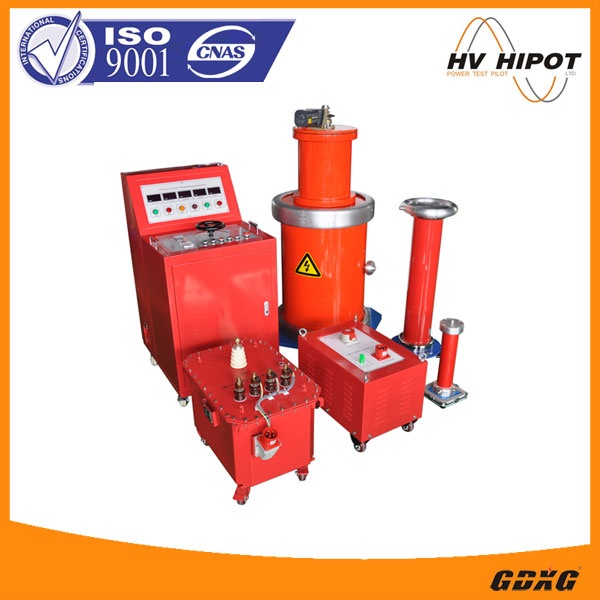

System composition

1. Hipot Test Control Table GDYD series
2. PD-free Gas type transformer
3. Coupling capacitor
4. Protective resistor
5. Isolation filter
6. Partial discharge detector
7. Other accessories

Features

Advanced No partial discharge epoxy insulating sleeve, small partial discharge capacity.
Low impedance voltage.
Automatic control technology, good anti-interference performance.
Rapid electronic protection, high reliability.
Rated Capacity(KVA) : 5-5500
High Voltage(KV): 50-250
Low Voltage(KV): 0.22/0.38~0.38/0.6~0.6/3~3/6/10
Top cover (OD x Height) (mm): accordance with specific conditions

Product parameter

Model	Reted Capacity (KVA)	High Voitage (KV)	Low Voitage (KV)	Top cover OD x Height	Weight
GDYT-5/50	5	50	0.22/0.38	320x450	42
GDYT-50/50	50	50	0.22/0.38	850x945	360
GDYT-10/100	10	100	0.22/0.38	570x725	150
GDYT-50/100	50	100	0.22/0.38	850x1000	400
GDYT-100/100	100	100	0.22/0.38	850x1000	800
GDYT-15/150	15	150	0.22/0.38	1165x1400	500
GDYT-75/150	75	150	0.22/0.38	1350x1570	1100
GDYT-150/150	150	150	0.38/0.6	1350x1570	1400
GDYT-20/200	20	200	0.22/0.38	1165x1850	760
GDYT-100/200	100	200	0.22/0.38	1450x1950	1800
GDYT-200/200	200	200	0.38/0.6	1800x1950	3100
GDYT-25/250	25	250	0.22/0.38	1250x2200	1250
GDYT-150/250	150	250	0.38/0.6	1450x2200	1900
GDYT-250/250	250	250	0.38/0.6	2000x2300	3100
GDYT-500/250	500	250	3/6	200x2600	5800
GDYT-1000/250	1000	250	3/6	2200x2600	8200
GDYT-30/300	30	300	0.22/0.38	1350x2300	1350
GDYT-150/300	150	300	0.38/0.6	1450x2500	2100
GDYT-300/300	300	300	0.38/0.6	1700x2500	3700
GDYT-600/300	600	300	0.6/3	2000x2650	6100
GDYT-900/300	900	300	3/6	2000x2650	7400
GDYT-400/400	400	400	0.6/3	1800x3500	4100
GDYT-800/400	800	400	3/6	2200x3600	11000
GDYT-1200/400	1200	400	3/6	2600x4200	15000
GDYT-1600/400	1600	400	3/6/10	2600x4200	19000
GDYT-150/500	150	500	0.6/3	2600x4500	6800
GDYT-250/500	250	500	0.6/3	2600x4500	7800
GDYT-500/500	500	500	0.6/3	2600x4500	9800
GDYT-1000/500	1000	500	3/6	3000x4600	18500
GDYT-2000/500	2000	500	3/6/10	3000x4600	28000
GDYT-165/550	165	550	0.6/3	3400x5000	9100
GDYT-550/550	550	550	3/6/10	3400x5000	14000
GDYT-1100/550	1100	550	3/6/10	3400x5100	22000
GDYT-2200/550	5500	550	3/6/10	3400x5100	31000
