GDYT Partial Discharge Test System

General Information

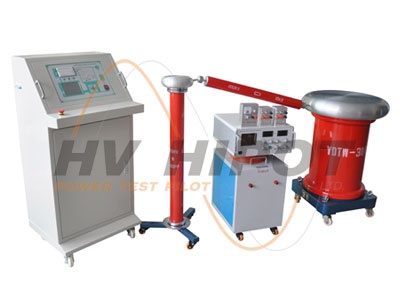

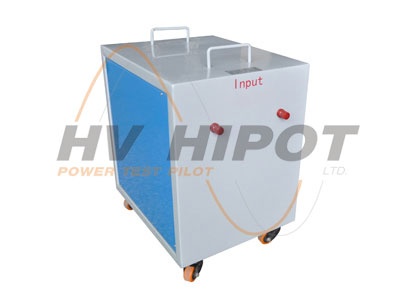

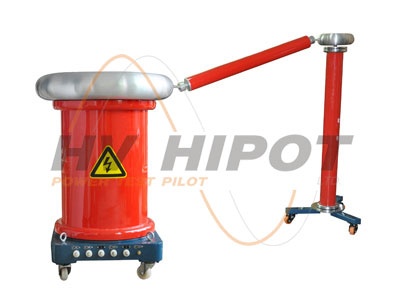

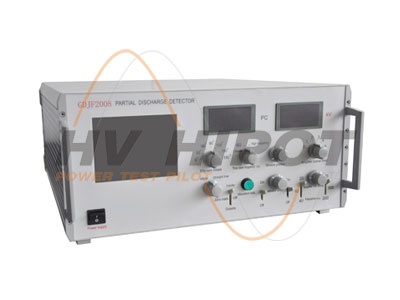

GDYT series include partial discharge power frequency testing transformer(YDTW), partial discharge detector(GDJF2008), Isolation filter frequency doubling power device(GDSF-81G) and power frequency withstand voltage control table(GDYD table). It widely used in electrical manufacturing,power operation departments, research institutes and universities.

Features

  • Advanced PD-free epoxy insulating tube, small partial discharge capacity.
  • Low impedance voltage, better than national standard.
  • Automatic control technology, good anti-interference performance.
  • Rapid electronic protection, high reliability.

Specifications

  • Rated Capacity(KVA) : 5~5500
  • High Voltage(KV): 50~250
  • Low Voltage(KV): 0.22/0.38~0.38/0.6~0.6/3~3/6/10
  • Top cover (OD xHeight) (mm): accordance with specific condition



Model

Rated Capacity

High

Voltage

Low

Voltage

Top cover

OD x Height

Weight

(KVA)

(KV)

(KV)

(mm)

(KG)

YDTW-5/50

5

50

0.22/0.38

320x450

42

YDTW-50/50

50

50

0.22/0.38

850x945

360

YDTW-10/100

10

100

0.22/0.38

570x725

150

YDTW-50/100

50

100

0.22/0.38

850x1000

400

YDTW-100/100

100

100

0.22/0.38

850x1000

800

YDTW-15/150

15

150

0.22/0.38

1165x1400

500

YDTW-75/150

75

150

0.22/0.38

1350x1570

1100

YDTW-150/150

150

150

0.38/0.6

1350x1570

1400

YDTW-20/200

20

200

0.22/0.38

1165x1850

760

YDTW-100/200

100

200

0.22/0.38

1450x1950

1800

YDTW-200/200

200

200

0.38/0.6

1800x1950

3100

YDTW-25/250

25

250

0.22/0.38

1250x2200

1250

YDTW-150/250

150

250

0.38/0.6

1450x2200

1900

YDTW-250/250

250

250

0.38/0.6

2000x2300

3100

YDTW-500/250

500

250

3/6

200x2600

5800

YDTW-1000/250

1000

250

3/6

2200x2600

8200






Much more products for your option:


1.  GDPD-505 Portable Partial Discharge Detector for Cable


2.  GDPD-300U Portable Ultrasonic Partial Discharge Detector


3. GDJF-2008 Partial Discharge Detector
