GDHG-206 CT/PT On-site Calibration

hits:

General introduction

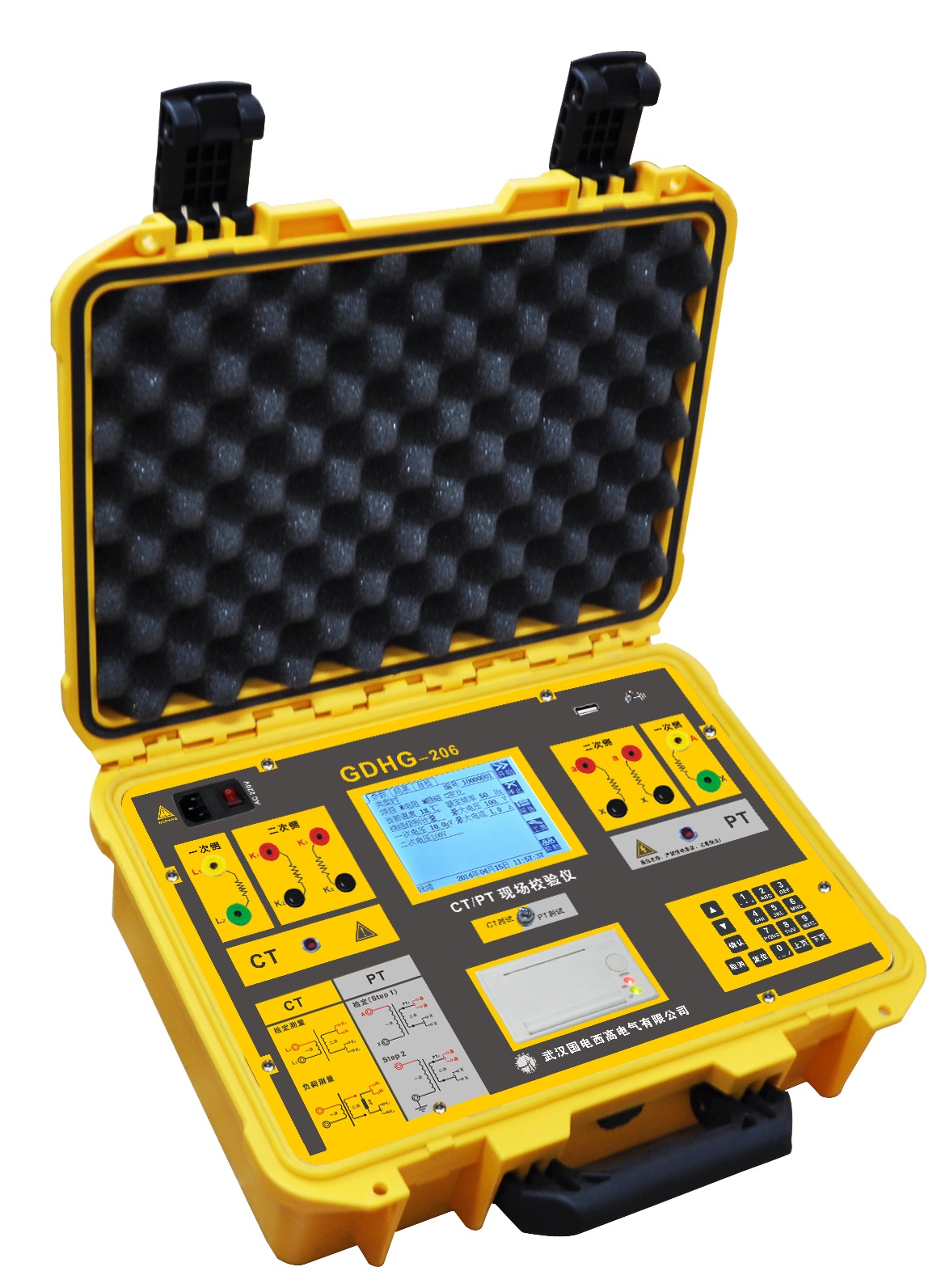

GDHG-206 CT/PT On-site Calibrator is designed for analyzing current transformers and voltage transformers of ratio error, angle error, ratio error/angle error of 1%-200% current. It can directly measure turns ratio and polarity, actual secondary burden of CT/PT.

The model uses DC and AC power supply with high precision and automatic linear adjustment. High speed and reliable digital processing module is also adopted.

Different types

GDCT-103B CT On-site Calibrator(with white screen)
GDCT-103C CT On-site Calibrator (with true color big screen)
GDPT-103 PT On-site Calibrator
GDPT-103C CVT On-site Calibrator

Specifications

CT Turn Ratio Range	5A/5A- 25000A/5A (5A/1A- 5000A/1A) Turn ratio error ±0.2%
PT Turn Ratio Range	Full range measurement ±0.2%
Accuracy of PT, CT Error	±0.05%
DC Resistance	0.0-0.1Ω ±3%
DC Resistance	0.1-50Ω ±1%
CT Secondary Burden	1Ω-25Ω ±2%
PT Secondary Burden	1VA-500VA ±2%
Ratio Error	0.001%-3% (100V)
Angle Error	0.00’-50’ (100V)
Admittance	0.1ms-99.9ms
Error	∆X= ±(2%×X+2%×Y±2digit), ∆Y= ±(2%×X+2%×Y±2digit)
