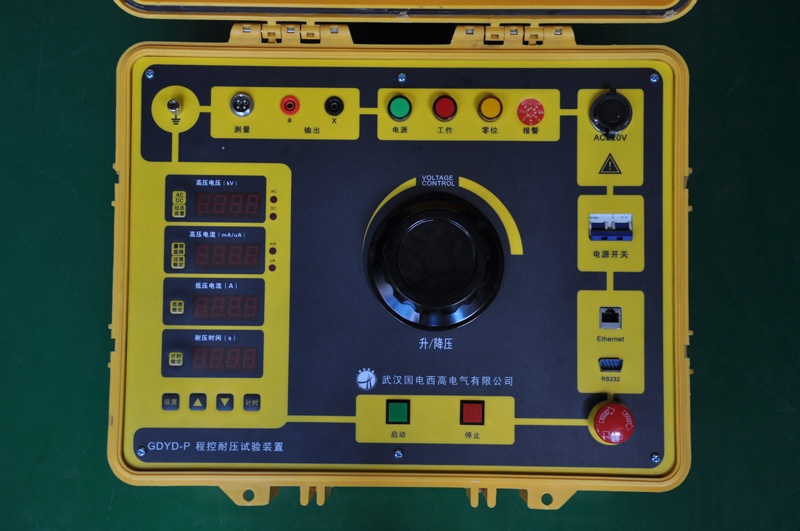

GDYD-P Programmable AC/DC hipot test set
|
Parameter Table of Testing Transformer |
|||||||
|
Model No. |
Capacity(kVA) |
HV Voltage (kV) |
HV Current (mA) |
Low Voltage Input |
Ratio (HV/Meter) |
Temperature Rise ℃ (30min) |
|
|
Voltage (V) |
Current (A) |
||||||
|
YD-3/50 |
3 |
50 |
60 |
200 |
15 |
500 |
10 |
|
YD-5/50 |
5 |
50 |
100 |
200 |
25 |
500 |
10 |
|
YD-10/50 |
10 |
50 |
200 |
200 |
50 |
500 |
10 |
|
YD-20/50 |
20 |
50 |
400 |
400 |
53 |
500 |
10 |
|
YD-30/50 |
30 |
50 |
600 |
400 |
79 |
500 |
10 |
|
YD-5/100 |
5 |
100 |
50 |
200 |
25 |
1000 |
10 |
|
YD-10/100 |
10 |
100 |
100 |
200 |
50 |
1000 |
10 |
|
YD-20/100 |
20 |
100 |
200 |
400 |
53 |
1000 |
10 |
|
YD-30/100 |
30 |
100 |
300 |
400 |
79 |
1000 |
10 |
|
YD-20/150 |
20 |
150 |
133 |
400 |
53 |
1500 |
10 |
|
YD-30/150 |
30 |
150 |
200 |
400 |
80 |
1500 |
10 |
|
YD-50/150 |
50 |
150 |
333 |
400 |
132 |
2000 |
10 |
|
YD-50/200 |
50 |
200 |
250 |
400 |
132 |
2000 |
10 |
|
YD-100/200 |
100 |
200 |
500 |
400 |
263 |
2000 |
10 |
|
YD-150/200 |
150 |
200 |
750 |
400 |
395 |
2000 |
10 |
|
YD-200/200 |
200 |
200 |
1000 |
400 |
526 |
2000 |
10 |
|
YD-50/300 |
50 |
300 |
170 |
400 |
132 |
3000 |
10 |
|
YD-150/300 |
150 |
300 |
500 |
400 |
395 |
3000 |
10 |
More information will be provided:
1. GDYD-A Automatic AC/DC Hipot Test Set
2. GDYD-M Manual AC/DC Hipot Test Set (Pointer Type)
3. Technology differences among control part of Hipot test sets
