General introduction

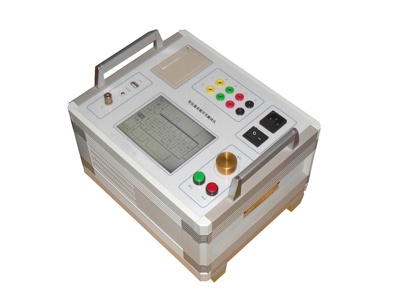

GDKC-3000 is suitable to test various tap changers and arc suppression coil switch.

Features

• With high stable negative feedback constant current technology, current stability <0.1%.
• All data can be obtained at one time, easy operation.
• Suitable to test autotransformer.
• Accurately measure Y type non-neutral point transformers.
• Real waveform and data can be shown.It is important to show transient process of tap changer which is useful to analyze the tap changer.
• When the inductance of winding is big, it will cause oscillation of waveform. This model use high current injection retest to avoid the problem.
• Built-in printer, with memory to storage data up to 40groups.
• Specifications
• Power input: AC220V± 10%, 50Hz±10%
• Environmental temperature: -10--45℃
• Humidity: ≤80%RH
• Insulation resistance: >2MΩ
• Leak current: <3.5mA
• Test current: 3-phase independent constant current source
• Test current: Charging current 1A stability 0.1%
• Transition resistance: range 0.01-20Ω resolution 0.01Ω ; Accuracy 1%±2digits
• Transition time: range 1-500ms resolution 0.1ms
• Sampling rate: 10kHz
• Accuracy 0.5%±2digits
• Dimension: 280*240*170mm
• Weight: about 4kg
