General Information

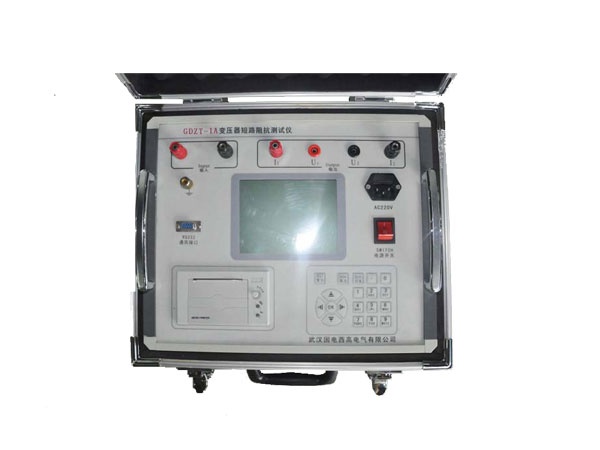

GDZT-1A Transformer Winding Impedance Tester is suitable for short circuit impedance measurement of 35kV main transformers. On-site and laboratory test are both ok.

Features

• LCD screen, data can be read clearly even in direct sunlight.
• Measurement data is accurate.
• Single phase measurement mode. When selecting transformer connection, each phase short circuit impedance can be obtained automatically after three times measurements.
• Voltage, current and power can be measured at the same time. The frequency of imposed power supply is also measured.
• With memory to storage data.
• Small size and light weight.

Specifications

• Measurement accuracy: Voltage,current 0.2%
• Power: COSφ>0.1 0.5%
• COSφ≤0.1 1.0%
• Impedance: COSφ>0.1 0.5%
• COSφ≤0.1 1.0%
• Measurement range of voltage: AC 10V-900V
• Measurement range of current: AC 0.5A-60A
• Working temperature: -10℃--50℃
• Humidity: 0-80%
• Power supply: AC220V±10﹪,50Hz±1Hz
• Dimension: 360*220*150mm
• Weight: about 5kg
