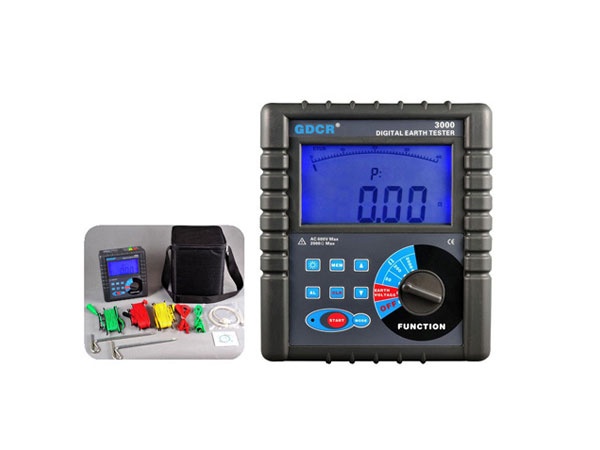

GDCR3000 Digital Earth Resistance Tester is specially designed and manufactured for field measurement, adopting the latest digital and micro-processing technology, 3-pole or 2-pole method for earth resistance measurement, with a unique function of wire resistance verification, anti-interference capability and the ability to adapt to the environment, to ensure high precision, high stability and reliability for prolonged measure, which is widely used in electric power, telecommunications, meteorology, oil field, construction, lightning protection, industrial electrical equipment and other earth ground resistance measurement.
GDCR3000 Digital Earth Resistance Tester has a unique function of wire resistance verification, more accurate on measuring on-site low value earth ground resistance, which can avoid error caused by resistance change due to prolonged usage of testing wire; avoid error caused by testing wire that is failed to be fully inserted into tester interface or by poor contact; avoid error caused by users’ replacing or lengthening testing wires.
GDCR3000 Digital Earth Resistance Tester is composed of host machine, monitoring software, testing wires, communication wires and others. The large LCD display of host machine is with blue backlight and bar graph indicating that can be seen clearly. At the same time it can store 400 sets of data, fulfilling historical inquiry and online real-time monitoring through monitoring software, dynamic display, with the maximum, minimum, and mean indicators, with alarm settings and alarm indicator, and with the functions like historical data access, reading, preservation, report forms, printing and so on.
|
Functions |
Earth resistance measurement, earth voltage measurement,Low resistance measurement |
|
Power supply |
DC 9V (Zn-Mn dry battery R14S 1.5V 6 pieces,Continuous 300 hrs ) |
|
Methods of Measurement |
Earth resistance :Rated current pole changing method; test current : 3mA Max, 820Hz; Earth voltage : Average rectifier |
|
Dispaly model |
4 digital LCD display,Blue-screen backlight |
|
Indicator light |
LED indicator flash during test,LCD count down display |
|
LCD dimension |
124mm×67mm |
|
Dimension |
Instrument -- 215mm×190mm×95mm,1443g( included battery) |
|
Test leads -- 1.6m*2pieces , 20m*1 piece , 10m*1 piece , 5m* 1 piece , 847g |
|
|
Ground rop-- φ10mm×150mm*2pieces , φ10mm×150mm ,468g |
|
|
Carrying bag: 915g |
|
|
Earth Resistance |
Test Range: 0.01Ω~20Ω( resolution--0.01Ω) ,0.1Ω~200Ω( resolution --0.1Ω),1Ω~2000Ω( resolution --1Ω) ; accuracy :±1%reading±3dgt |
|
Earth Voltage |
AC 0~600V ; accuracy :±1%reading±3dgt |
|
Test time |
Earth voltage:about 3 times/second |
|
earth resistance:about 5 second/time |
|
|
Measure times |
Above 5000 times |
|
Line voltage |
Earth voltage:measure below AC 600V |
|
RS232 connector |
RS232 connector,Software monitoring,stored data can be uploaded to PC , storage and printed. |
|
Communication cable |
RS232 ,1.5m * 1 piece |
|
Working condition |
-10 ℃ ~40 ℃ ;below 80%rh |
|
Storage condition |
-20 ℃ ~60 ℃ ;below 70%rh |
|
Over-load protection |
Measurement of earth resistance:E-P,E-C ; AC 280V/ 3 secs |
|
Insulation resistance |
Above 10MΩ(between circuit and the shell , 500V) |
|
Withstand voltage |
AC 3700V/rms(between circuit and the shell) |
|
Electromagnetic property |
IEC6 1010-4-3 ,electromagnetic field≤1V/m |
|
Standards |
IEC61010-1 , IEC1010-2-31 , IEC61557-1,5, IEC60529(IP54) |
