Ⅰ General Information

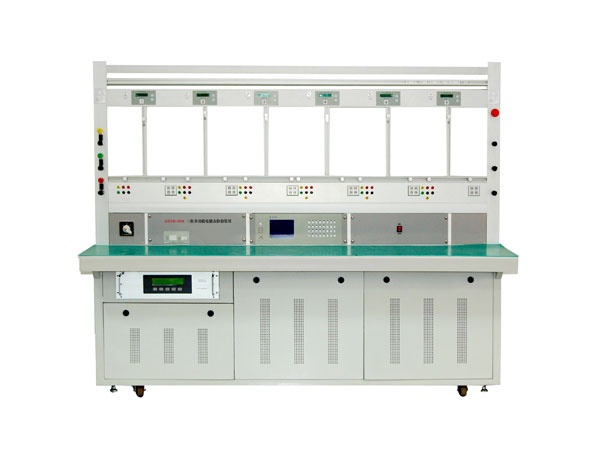

GDYB-S18 Meter Test System is used to measure various kinds of single/three phase meters of 0.1% and below. It has good appearance, complete functions and excellent performance .

Ⅱ Main Features&Functions

• Compact design, the meter rack of the testing equipment and the desk frame are all made of special aluminum alloy and the desk face- plate is made of fireproof and heatproof fiber material.
• Easy to use, both keyboard and PC operation are available.
• Advanced automation. User only needs to put on meters, adjust the photoelectric sampler and set the parameters in good condition, then all the test items, including pre-heating, actuation and false actuation tests, standard deviation test, basic error test are all controlled by PC by one test. The procedure of meter calibration can be user-defined.
• Photoelectric sampler can realize three-dimensional adjustment. It can not only sample the turn-plate signal of the rotary meter but also receive the strobe signal of the electronic meter.
• The error processing system can receive signal from the photoelectric sampler and output pulse of the insert type electronic meter, and high frequency pulse signal of standard meter.
• Meters in same type(same phase line, rated voltage, calibrated current) but different constant (at most 3 kinds) can be test at same time.
• Test RS485 communication function of multi-functional meter, required error and clocking error (Time signal output is necessary).
• Locate the mark area of rotary meter automatically, which enables easier false actuation tests.
• Superimposing 2-21 harmonics in fundamental wave of power frequency, harmonic amplitude and phase can be set according the requirements. Also harmonic analysis and draw waveform can be performed for output components.
• Auto testing on every unit voltage, current, power stability and three phase total power stability.
• High stability and reliability, which can provide strong output power. Voltage (current) loop can take load of any type.
• The testing equipment is provided with complete malfunction checking, locating, protecting and alarming functions to avoid damaging of the bench resulted from wrong manual wiring or operating.
• PC software developed with Delphi for Windows 95 provides fast and effective equipment control and data checking, it also provides complete functions, such as report printing, quantity counting and assets maintaining

Ⅲ Specification

• Accuracy level: 0.1%
• Output voltage: 3*100V／57.7V Y 3*100V ∆; 3*380V／220V Y 3*380V ∆
• Regulating range: 0-120% consecutively adjustable
• Regulating accuracy: better than 0.01%
• Special voltage range can be setup according to actual order.
• Current range: 0.1A, 0.25A, 0.5A, 1A, 2.5A, 5A, 10A, 20A, 50A, 100A
• Regulating range: 0-120% consecutively adjustable
• Regulating accuracy: better than 0.01%
• Output power: (voltage loop) GDYB-S18 800VA; (current loop) GDYB-S18 1500VA
• Stability of output voltage, current and power: ≤0.05%/120S PF=1 (level O.1type)
• Wave distortion of output voltage and current: ≤0.5%
• Symmetry of three phase: better than 120°+0.3°
• Frequency range: 45Hz-65Hz regulating accuracy: 0.1 Hz
• Phase shifting range: -180.0°-180.0° regulating accuracy: 0.1°
• Standard crystal oscillator stability: ≤10-7/s
• Indicating instruments class
• Voltmeter and ammeter accuracy: level ±0.2%
• Phase meter accuracy: ±0.5°
• Frequency meter accuracy: ±0.1Hz
• Maximum meters for test: 18
• Power supply: 3*220V±10%, 50Hz
• Maximum power consumption: 4000VA
• Working temperature: 20±5℃ relative humidity: ≤85%
• Dimensions and weight:2500mm*720 mm*1900mm 350Kg
