Ⅰ General Information

GDDF-10 is used for checking the vertical insulation between turns, layers, sections and phases of the transformer winding. It is small and light, with stable performance, and also easy to operate.

Ⅱ Features

• Adopted with advanced electronic technology, with Variable frequency regulator.
• Digitally control of parameter presetting, protection setting, frequency choosing and voltage regulating.
• PC inserted. Color touch screen, with thermal printer.
• With a data storage capacity of 3200 sets of data.
• Optional test frequency of 50Hz, 100Hz, 150Hz and 200Hz.
• Real-time adjustment for step length. 1V, 2V, 5V and 10V are optional.
• Internal LC filtering circuit, ensuring low waveform distortion rate.
• Internal compensation inductance, which compensates the current of tested object capacitance, and improves the loading capacity.
• It can generate test voltage output of 1, 2, 3, 4 times frequency.
• With easy wiring and operation. It has lower requirement for power source capacity during on-site test.

Ⅲ Technical Data

• Capacity: 10kVA (extendable)
• Input voltage: AC, three phase, 380V±10% (Single phase 220V can be connected to A and C ends of power supply input. Then the capacity reduces by half.)
• Power frequency: 50Hz
• Output voltage: 0 to 350V (If with an intermediate transformer, this voltage would be higher.)
• Test frequency: Optional at 50Hz, 100Hz, 150Hz and 200Hz.
• Waveform distortion: ＜3%
• Dimensions (mm): 420(L)*300(W)*340(H)
• Weight: 17kg

Much more products for your option

1.  GDHG-106B CT/PT Analyzer

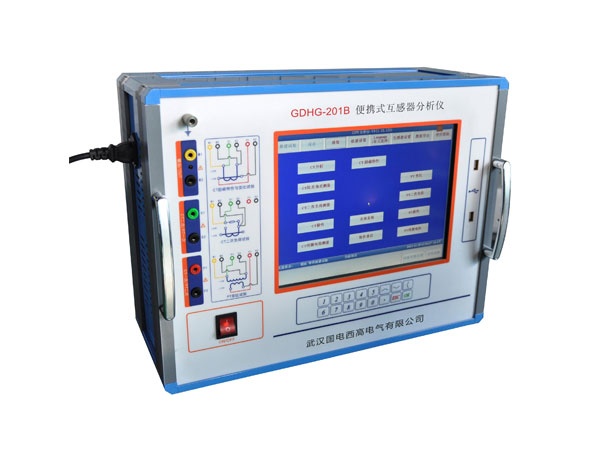

2.  GDHG-201P CT/PT Analyzer
